Which design choice has the biggest impact on pool cost?

Shape and size, by some distance. A simple rectangle of the same footprint as a free-form pool can come in 10–25% cheaper to build and noticeably cheaper to run. After that, interior finish and feature count.

How much does pool design itself cost in South Africa?

Standalone design typically runs R8,000–R35,000, or 5–10% of the build budget when bundled with construction. Architect-led infinity or large bespoke projects sit higher.

Do I need an independent designer if my builder offers free drawings?

Builder drawings are usually optimised for the builder's standard methods and margin. An independent designer protects your interests on layout, sightlines, finish specification and equipment choice.

What's a realistic pool design timeline?

Allow 2–6 weeks: 1–2 weeks for the brief and site survey, 1–2 weeks for concept options and 1–2 weeks for technical drawings before tender.

Do I need municipal approval to build a pool in South Africa?

Yes. Every metro (Johannesburg, Tshwane, Ekurhuleni, Cape Town, eThekwini, Nelson Mandela Bay) requires building plans lodged under SANS 10400 and pool-safety compliance under SANS 10134. Approvals typically take 6–12 weeks and cost R2,500–R8,000 in plan fees. Building without approval risks demolition orders and blocks a future sale.

How does dolomitic ground on the West Rand and Centurion affect pool design?

Dolomite risk zones require a competent-person geotech report before design, and often mandate a raft foundation, articulated plumbing joints and a lightweight fibreglass shell rather than heavy concrete. Expect R40,000–R120,000 in extra geotech and engineering on top of a standard build. Some suburbs prohibit in-ground pools outright.

What pool safety features are required by law in South Africa?

SANS 10134 requires either an approved safety net, a compliant safety cover, or a self-closing self-latching perimeter fence at least 1.2 m high with vertical bars max 100 mm apart. Municipal building inspectors sign this off before occupation certificates are issued. Non-compliance also voids most home insurance claims involving the pool.

How should I size a pool for a typical South African plot?

The common sweet spot for suburban SA plots is 8 x 4 m (32 m²) — big enough for family use, small enough to leave garden and setback. Lap swimmers need 12–15 m length; plunge pools work from 3 x 3 m up. Municipal by-laws typically require 1–1.5 m setback from boundary walls and 2 m from the main house structure.

Should I choose salt chlorination or standard chlorine dosing?

Salt chlorination costs R18,000–R35,000 more up front but cuts monthly chemical spend by 40–60% and produces softer water. In coastal areas the cell lifespan is shorter (3–5 years vs 5–7 inland) so recalculate payback. Salt is not compatible with some natural stone coping — specify travertine or porcelain if using salt.

How should I orient a pool for South African sun and wind?

In the southern hemisphere, a long axis running east–west maximises sun exposure and passive solar heating. Position the pool north of the house for all-day sun, and shelter it from the prevailing south-easter (Cape Town) or afternoon Highveld thunderstorms with a wall or planting on the windward side to reduce evaporation and debris load.

Can I add solar heating during the design phase in South Africa?

Yes, and it is cheaper than retrofitting. Solar panel arrays sized at 80–100% of pool surface area extend the swimming season by 8–10 weeks in Gauteng and up to 16 in KZN. Design in the roof space, plumbing bypass valves and a solar controller from the start — expect R25,000–R55,000 installed. Combined with a cover, solar can eliminate heat-pump running cost entirely for 8 months a year.

By Swimming Pool Builders Editorial Team Reviewed by SPB Independent Review Desk Last reviewed 6 May 2026Editorial standards Report a correction

Swimming Pool Design in South Africa: Options, Costs & Specs to Ask For

The design choices made before a single brick is laid set 80% of the final price. This guide breaks down the decisions that actually move ZAR — shape, finish, features, site, equipment and surround — so you can spec a pool you can afford to build and to run.

Compare pool types See cost ranges

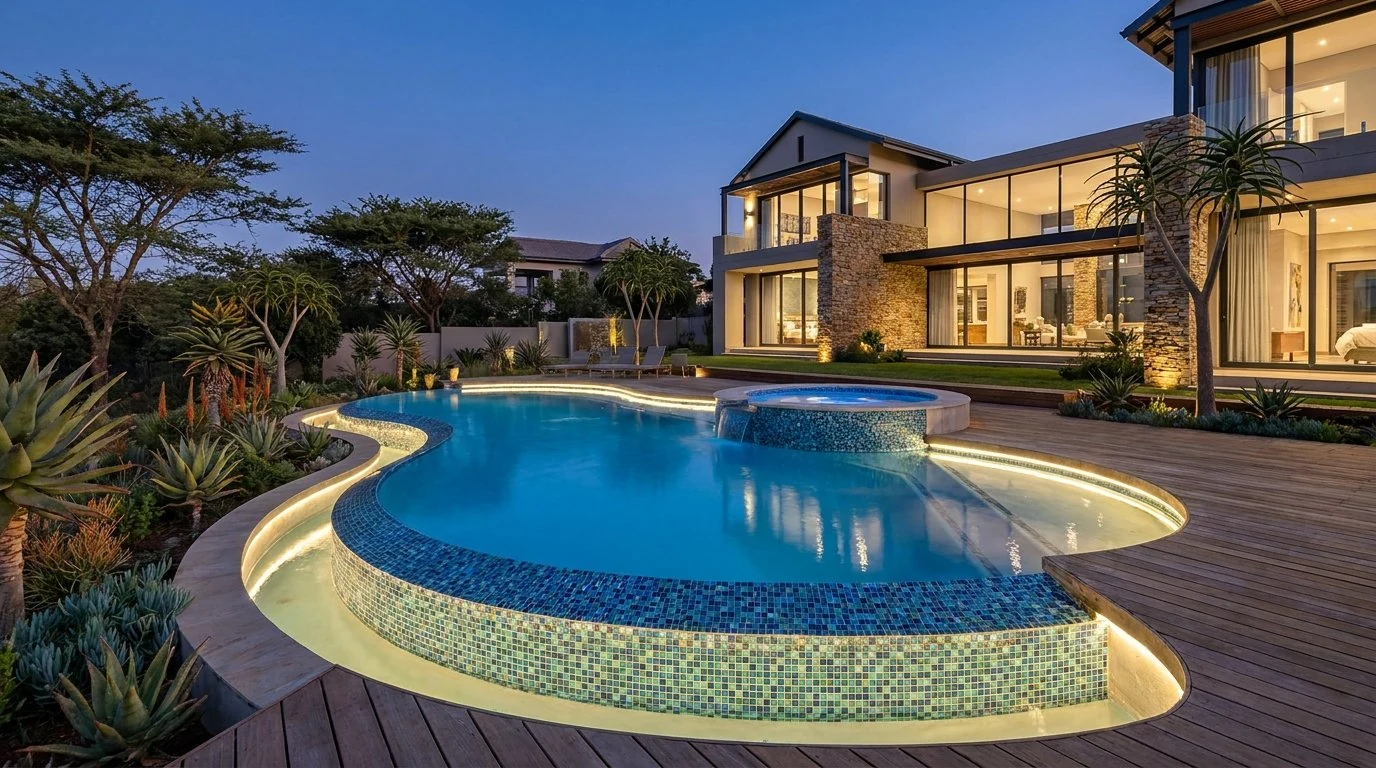

Luxury freeform pool and raised spa with glass mosaic and LED lighting at dusk

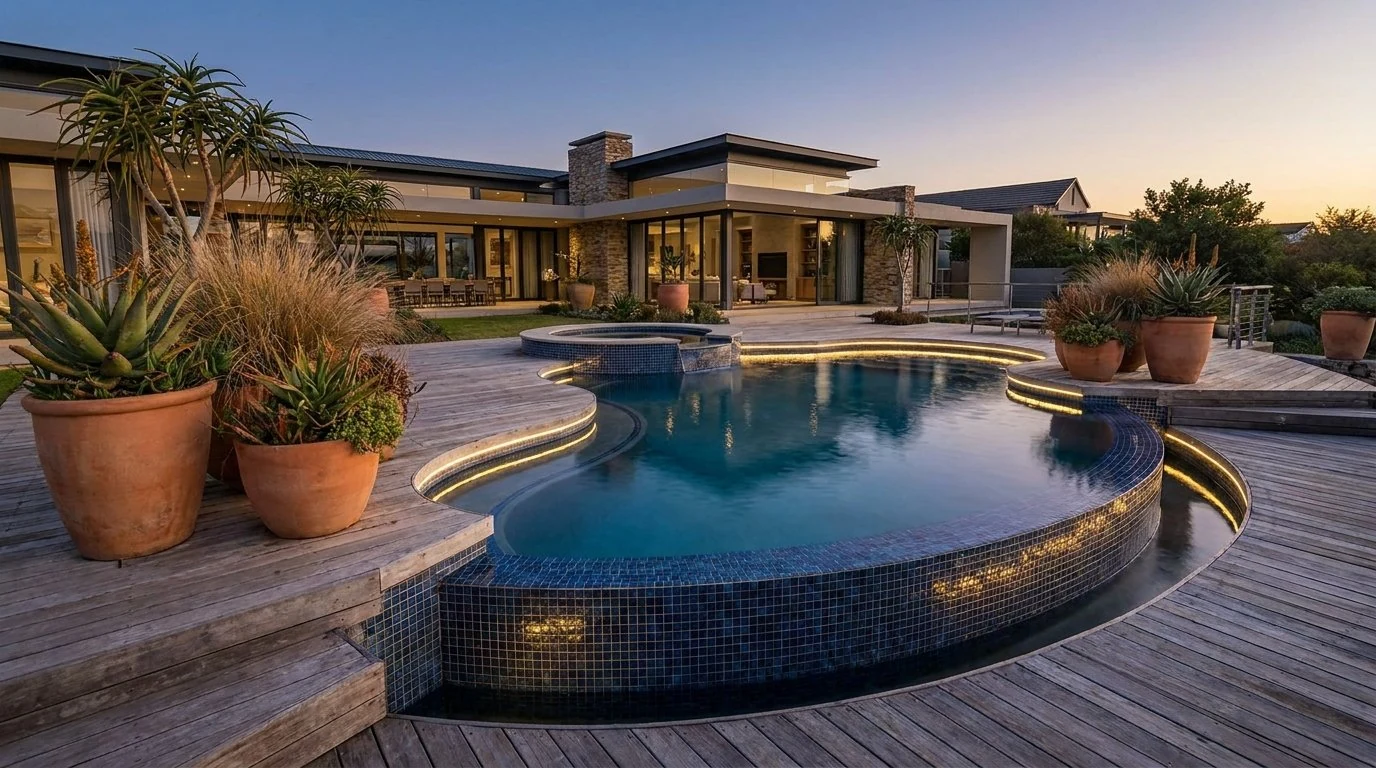

Freeform pool with LED edge lighting, terracotta pots and aloes at a modern home at dusk

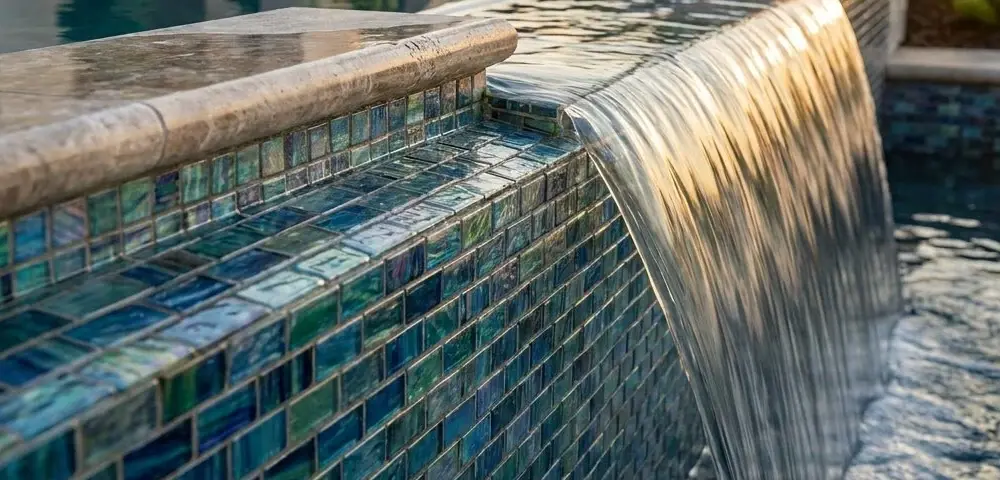

Iridescent glass mosaic spillway water feature on a swimming pool at sunset

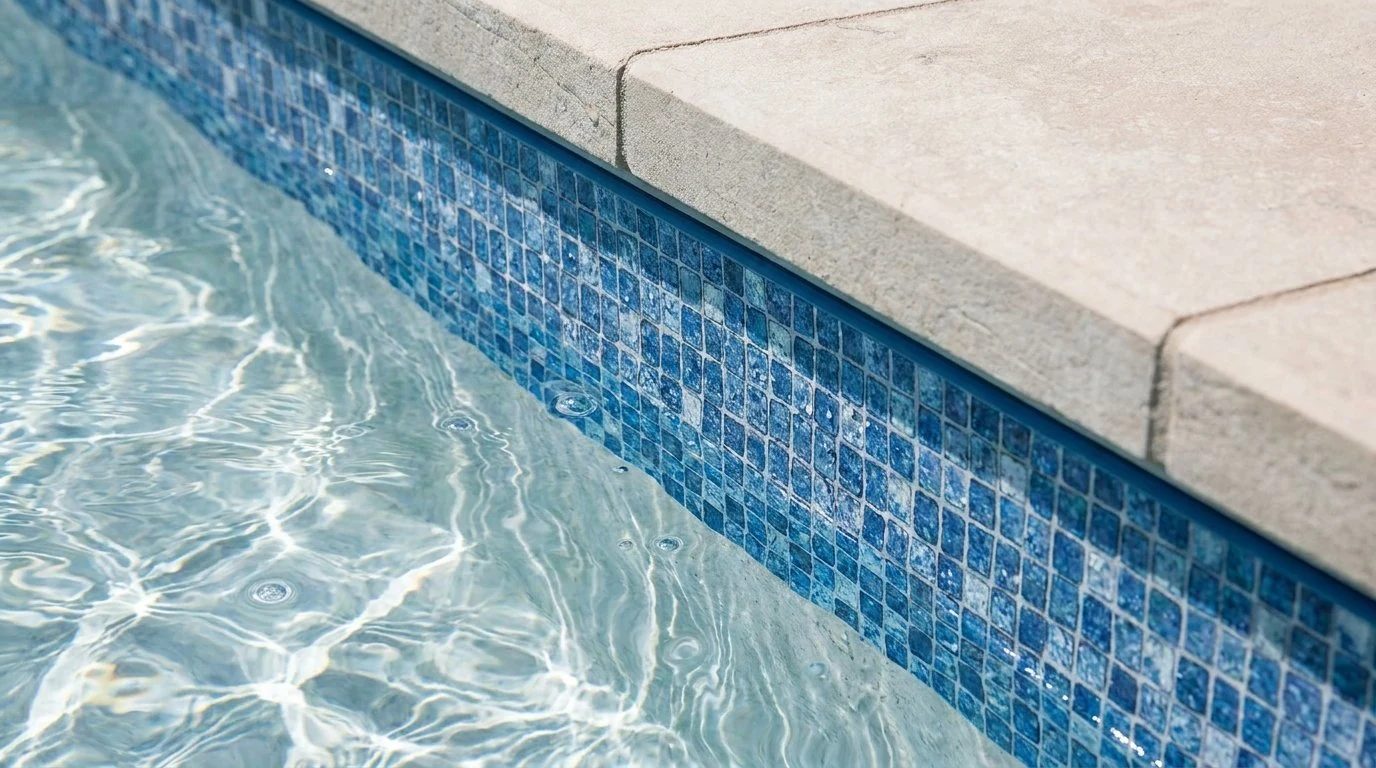

Blue glass mosaic waterline tiles against cream coping on a clear swimming pool

The six design choices that drive your budget

Every other decision is a rounding error compared to these. Settle them before talking to a builder — otherwise the quote shapes the design, not the other way round.

Shape & size

Largest single driver

A simple rectangle vs free-form curves can shift build cost 10–25%. Every extra m² adds shell, finish, water and chemicals over the pool's life.

Interior finish

R30k – R200k+

Marbelite is the SA baseline. Quartz and pebble finishes add R30k–R80k. Full glass-tile interiors push past R200k on a mid-size pool.

Features

R10k – R150k each

Spillover spa, vanishing edge, swim-jets, in-floor cleaning, deck-level coping. Each is a discrete cost line — and a maintenance one.

Site & access

R20k – R150k hidden

Slope, rock, water table, access for a TLB and reach for a concrete pump. The hardest sites quietly add a tier to the build cost.

Equipment spec

R15k – R60k delta

Variable-speed pump, cartridge vs sand filter, salt chlorinator, heat pump. Smarter equipment costs more up front and less every month.

Surround & deck

Often 20–40% of total

Coping, paving, decking, lighting, fencing. Easy to under-budget — the pool shell is rarely the most expensive line item.

The SA pool cost ladder

Researched ZAR bands for residential builds in 2026. Use these to place the design you actually want — not to negotiate down to a tier that won't deliver it.

Entry

R150k – R250k

Small fibreglass or compact concrete shell, marbelite, sand filter, basic surround.

Mid

R250k – R450k

Standard family concrete pool, quartz finish, paved surround, salt chlorinator.

Premium

R450k – R750k

Larger design, spillover spa or water feature, premium coping, heat pump, lighting.

Luxury

R750k+

Vanishing edge, glass-tile interior, integrated landscaping, automation, pool house.

Open the full cost breakdown →

Questions to settle before any builder quotes

What's the longest realistic dimension my site can take, after setbacks?

Concrete, fibreglass or vinyl — which fits this site and budget tier?

Which finish — marbelite, quartz, pebble or tile — and what's the cost delta?

Salt chlorinator or chlorine dosing, and how does that change running cost?

Variable-speed pump? Heat pump? Cover? Each is a line item, not a freebie.

What does the surround (coping, paving, fencing) actually cost in this tier?
